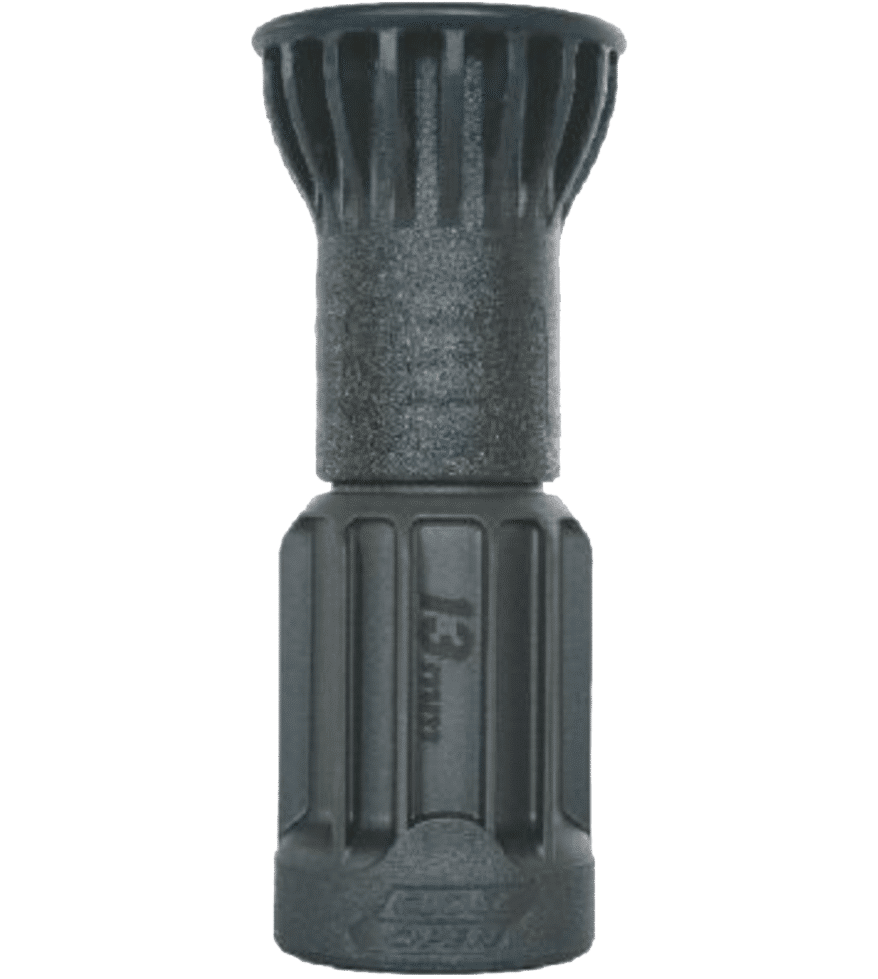

Firefighting fire. Triplex
- Triple-effect fire fighting nozzle
- Manufactured in aditative thermoplastics according to ISO 4892-2
| Reference | Measure | Fitting | Handle |
|---|---|---|---|
| TRIPLEX25SR | 25 mm | No fitting | No |
| TRIPLEX25U | 25 mm | Stamped aluminum | No |
| TRIPLEX25L | 25 mm | Latón | No |
| TRIPLEX45 | 45 mm | Cast Aluminum | No |
| TRIPLEX45U | 45 mm | Stamped aluminum | No |
| TRIPLEX45L | 45 mm | Latón | No |
| TRIPLEX25PL | 25 mm | Stamped aluminum | Reinforced |
| TRIPLEX45PLAL | 45 mm | Cast Aluminum | Simple |
| TRIPLEX45PLU | 45 mm | Stamped aluminum | Simple |
25mm Triplex
- 10 mm diameter for 25 mm semi-rigid fire hose according to EN-694
- 1″ inch female thread
- Weight 127 gr
- Length 162 mm
- TRIPLEX 25 mm data sheet
| Nominal pressure |
Effect | Flow | Reach |
|---|---|---|---|
| 2 BAR |
Jet | 62 l/min | 10.2m |
| 2 BAR | Curtain | 64 l/min | 4.9m |
| 6 BAR | Jet | 132 l/min | 6.5m |
| 6 BAR | Curtain | 137 l/min | 11.2m |
45mm Triplex
- 13mm diameter for flat fire hose
- 11″2″ BSP female thread
- Weight 142 gr
- Length 165 mm
- TRIPLEX 45 mm data sheet
| Nominal pressure |
Effect | Flow | Reach |
|---|---|---|---|
| 2 BAR |
Jet | 134 l/min | 16.5m |
| 2 BAR | Curtain | 148 l/min | 8.5m |
| 6 BAR | Jet | 246 l/min | 26m |
| 6 BAR | Curtain | 272 l/min | 13.4m |
| Referencia | TRIPLEX25L, TRIPLEX25PL, TRIPLEX25SR, TRIPLEX25U, TRIPLEX45, TRIPLEX45L, TRIPLEX45PLAL, TRIPLEX45PLU, TRIPLEX45SR, TRIPLEX45U, TRIPLEX50L, TRIPLEX50U, TRIPLEX80L, TRIPLEX80U |
|---|
